| Brand Name : | ERIC |
| Model Number : | ER847-2 |
| Certification : | ISO9000 |
| Price : | 10usd per rolls |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100000rolls per month |
| Delivery Time : | 10days |
| Specifications List of Pvc Coated Hexagonal Wire Mesh | |||
| Opening | Wire Diameter | ||
| Inch | mm | Wire gauge (BWG) | mm |
| 1/4" x 1/4" | 6.4 x 6.4 | 22, 23, 24 | 0.7, 0.6, 0.55 |
| 3/8" x 3/8" | 10.6 x 10.6 | 19, 20, 21, 22 | 1, 0.9, 0.8, 0.7 |
| 1/2" x 1/2" | 12.7 x 12.7 | 16, 17, 18, 19, 20, 21, 22, 23 | 1.6, 1.5, 1.25, 1, 0.9, 0.8, 0.7, 0.6 |
| 5/8" x 5/8" | 16 x 16 | 18, 19, 20, 21, | 1.25, 1, 0.9, 0.8 |
| 3/4" x 3/4" | 19.1 x 19.1 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1" x 1/2" | 25.4 x 12.7 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1-1/2" x 1-1/2" | 38 x 38 | 14, 15, 16, 17, 18, 19 | 2.1, 1.8, 1.6, 1.5, 1.25, 1 |
| 1" x 2" | 25.4 x 50.8 | 14, 15, 16 | 2.1, 1.8, 1.6 |
| 2" x 2" | 50.8 x 50.8 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| 4" x 4" | 101.6 x 101.6 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| galvanized hexagonal mesh size | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
| Inch | mm | Tolerance(mm) | G/SQ.M | BWG | |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | BWG23-27 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | BWG21-25 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | BWG22-27 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | BWG19-25 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | BWG18-25 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | BWG18-23 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | BWG18-23 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | BWG18-23 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | BWG18-21 |
| 3" | ±8.0 | 1.4mm - 30 | 2' - 2M | BWG17-20 | |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | BWG16-19 |

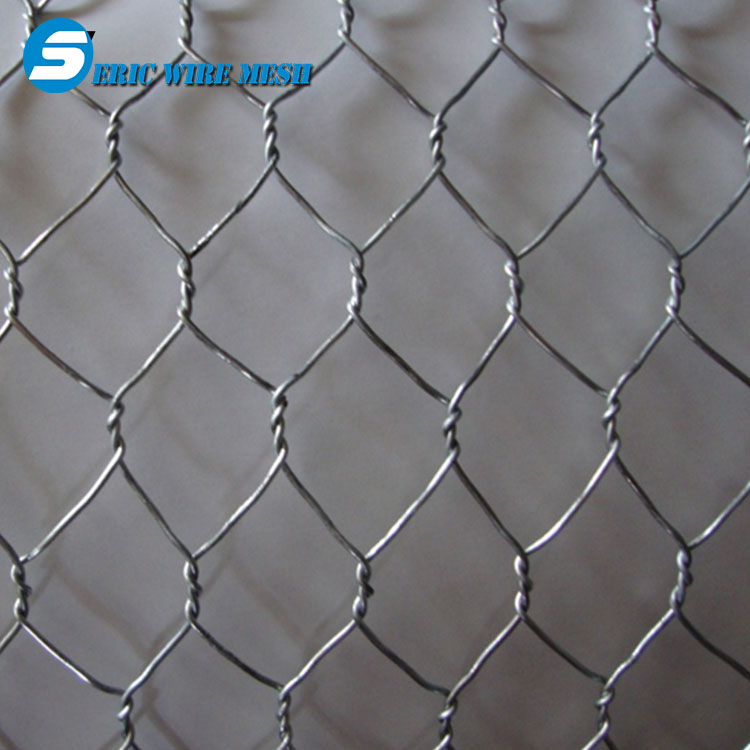

Hexagonal Wire Mesh Specification:
1. Material: Low Carbon Steel Wire,Stainless Steel Wire Mesh
2. Diameter: 0.1-4mm
3. Mesh Size: 3/8"-4"
4. Roll Width: 0.5m-2m
5. Surface Treatment: Galvanized or PVC Coated
6. Weaving Types: Positive Twist, Negative Twist, Positive and Negative twist.
7. Feature: Firm structure,flat surface,anti-corrosion,anti-oxidation
8. Classifiction: Electro Galvanized before/after Weaving
Hot Dipped Galvanized before/after Weaving
PVC Coated Before/After Weaving
Stainless Steel Hexagonal Wire Mesh
hot galvanized / pvc coated hexagonal wire mesh / chicken wire mesh for animal fence
| Galvanized hexagonal wire netting | |||||
| mesh | Min. Gal.v. G/SQ.M | Width | Wire Gauge (Diameter) BWG | ||
| Inch | mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
