| Brand Name : | ERIC |
| Model Number : | ER847-1 |
| Certification : | ISO9000 |
| Price : | 10usd per rolls |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100000rolls per month |
| Delivery Time : | 10days |

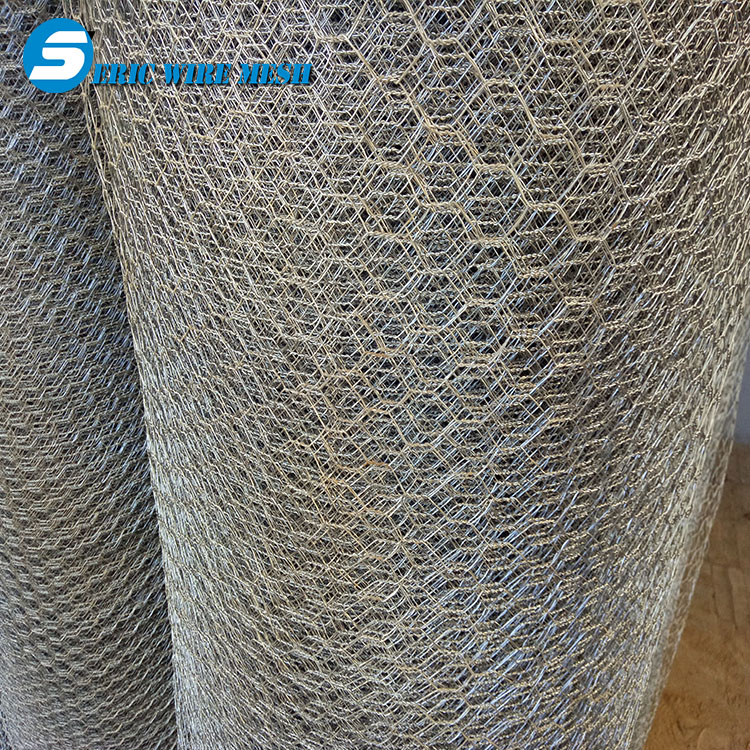

Chicken wire mesh
1.materials:galvanized iron wire mesh
2.mesh:3/8"-4"
3.wire gauge:bwg14-27
4.width:0.5-2m
5 Surface treatment : Electro galvanized or hot dipped galvanized
Material:low carbon steel iron wire,galvanized iron wire,pvc coated wire,stainless steel wire,
Weaving:normal twist and reverse twist
Surface treatment:Electro galvanized,hot-dipped galvanzied,pvc coated.
Application: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
| Specifications List of Pvc Coated Hexagonal Wire Mesh | |||
| Opening | Wire Diameter | ||
| Inch | mm | Wire gauge (BWG) | mm |
| 1/4" x 1/4" | 6.4 x 6.4 | 22, 23, 24 | 0.7, 0.6, 0.55 |
| 3/8" x 3/8" | 10.6 x 10.6 | 19, 20, 21, 22 | 1, 0.9, 0.8, 0.7 |
| 1/2" x 1/2" | 12.7 x 12.7 | 16, 17, 18, 19, 20, 21, 22, 23 | 1.6, 1.5, 1.25, 1, 0.9, 0.8, 0.7, 0.6 |
| 5/8" x 5/8" | 16 x 16 | 18, 19, 20, 21, | 1.25, 1, 0.9, 0.8 |
| 3/4" x 3/4" | 19.1 x 19.1 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1" x 1/2" | 25.4 x 12.7 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1-1/2" x 1-1/2" | 38 x 38 | 14, 15, 16, 17, 18, 19 | 2.1, 1.8, 1.6, 1.5, 1.25, 1 |
| 1" x 2" | 25.4 x 50.8 | 14, 15, 16 | 2.1, 1.8, 1.6 |
| 2" x 2" | 50.8 x 50.8 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| 4" x 4" | 101.6 x 101.6 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| galvanized hexagonal mesh size | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
| Inch | mm | Tolerance(mm) | G/SQ.M | BWG | |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | BWG23-27 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | BWG21-25 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | BWG22-27 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | BWG19-25 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | BWG18-25 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | BWG18-23 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | BWG18-23 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | BWG18-23 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | BWG18-21 |
| 3" | ±8.0 | 1.4mm - 30 | 2' - 2M | BWG17-20 | |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | BWG16-19 |
Hexagonal Wire Mesh Specification:
1. Material: Low Carbon Steel Wire,Stainless Steel Wire Mesh
2. Diameter: 0.1-4mm
3. Mesh Size: 3/8"-4"
4. Roll Width: 0.5m-2m
5. Surface Treatment: Galvanized or PVC Coated
6. Weaving Types: Positive Twist, Negative Twist, Positive and Negative twist.
7. Feature: Firm structure,flat surface,anti-corrosion,anti-oxidation
8. Classifiction: Electro Galvanized before/after Weaving
Hot Dipped Galvanized before/after Weaving
PVC Coated Before/After Weaving
Stainless Steel Hexagonal Wire Mesh
