| Brand Name : | ERIC |
| Model Number : | ER847-1 |
| Certification : | ISO9000 |
| Price : | 10usd per rolls |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100000rolls per month |
| Delivery Time : | 10days |
Hexagonal wire netting is used for feeding chicken, ducks, gooses, rabbits and the fence of zoo, etc
Materials: Low carbon steel wire, stainless steel wire or brass
wire
Weaving pattern: Straight twist, reverse twist, double-direction
twist.
Processing: Twisted before galvanized, weaving after galvanized.
Electro galvanized, hot dipped, plastic-coated, stainless steel,
PVC coated, etc.

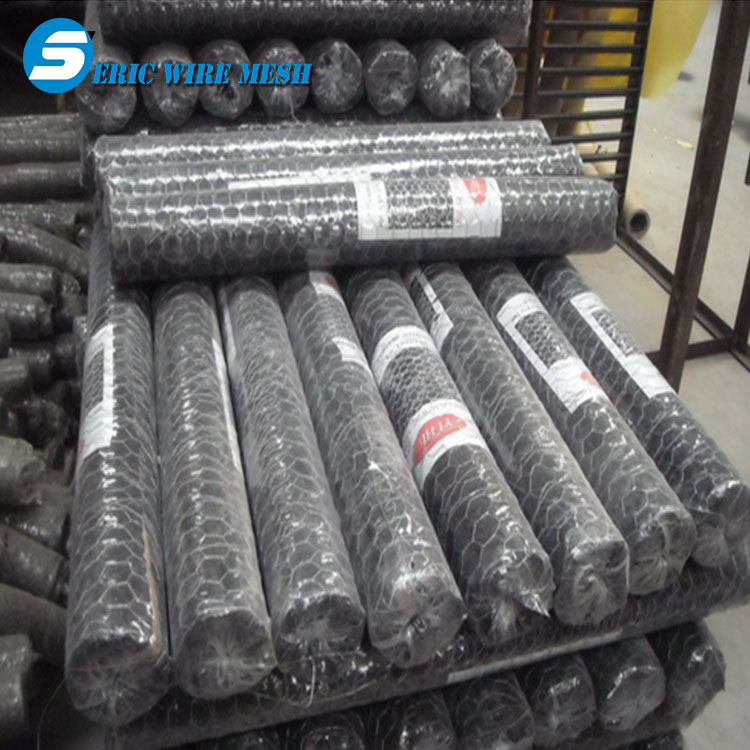

Galvanized hexagonal iron wire netting factory
Application: Hexagonal wire netting is used for feeding chicken,
ducks, gooses, rabbits and the fence of zoo. Also used in machinery
protection, fences for road, railway, etc. It can be made into box
to hold stones and sand to protect the bank, hillside, bridge and
other related civil engineering against the flood.
| Galvanized hex. wire netting in normal twist (In 30M roll, width of 0.5M---2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20 |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
Our Services
1. After placing orders will be timely feedback to track the progress of related wire mesh production, shipment, delivery and other production conditions.
2. The third-party inspection always gets real and true data from us and we will send hot hexagonal wire mesh photos to client if there is no inspection from the third-party.
3. In accordance with the stipulated time of shipment delivery, guaranteed wire mesh delivery time and supply capacity.
4. Encounter any quality problems can always contact us, we will promptly communicate timely replacement of the goods .
5. Installation, maintenance and repair instructions with full information.
6. 3-10 years warranty depends on different products and using environment.
| Specifications List of Pvc Coated Hexagonal Wire Mesh | |||
| Opening | Wire Diameter | ||
| Inch | mm | Wire gauge (BWG) | mm |
| 1/4" x 1/4" | 6.4 x 6.4 | 22, 23, 24 | 0.7, 0.6, 0.55 |
| 3/8" x 3/8" | 10.6 x 10.6 | 19, 20, 21, 22 | 1, 0.9, 0.8, 0.7 |
| 1/2" x 1/2" | 12.7 x 12.7 | 16, 17, 18, 19, 20, 21, 22, 23 | 1.6, 1.5, 1.25, 1, 0.9, 0.8, 0.7, 0.6 |
| 5/8" x 5/8" | 16 x 16 | 18, 19, 20, 21, | 1.25, 1, 0.9, 0.8 |
| 3/4" x 3/4" | 19.1 x 19.1 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1" x 1/2" | 25.4 x 12.7 | 16, 17, 18, 19, 20, 21 | 1.6, 1.5, 1.25, 1, 0.9, 0.8 |
| 1-1/2" x 1-1/2" | 38 x 38 | 14, 15, 16, 17, 18, 19 | 2.1, 1.8, 1.6, 1.5, 1.25, 1 |
| 1" x 2" | 25.4 x 50.8 | 14, 15, 16 | 2.1, 1.8, 1.6 |
| 2" x 2" | 50.8 x 50.8 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| 4" x 4" | 101.6 x 101.6 | 12, 13, 14, 15, 16 | 2.8, 2.4, 2.1, 1.8, 1.6 |
| galvanized hexagonal mesh size | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
| Inch | mm | Tolerance(mm) | G/SQ.M | BWG | |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | BWG23-27 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | BWG21-25 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | BWG22-27 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | BWG19-25 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | BWG18-25 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | BWG18-23 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | BWG18-23 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | BWG18-23 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | BWG18-21 |
| 3" | ±8.0 | 1.4mm - 30 | 2' - 2M | BWG17-20 | |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | BWG16-19 |
Hexagonal Wire Mesh Specification:
1. Material: Low Carbon Steel Wire,Stainless Steel Wire Mesh
2. Diameter: 0.1-4mm
3. Mesh Size: 3/8"-4"
4. Roll Width: 0.5m-2m
5. Surface Treatment: Galvanized or PVC Coated Hexagonal wire mesh
6. Weaving Types: Positive Twist, Negative Twist, Positive and Negative twist.
7. Feature: Firm structure,flat surface,anti-corrosion,anti-oxidation
8. Classifiction: Electro Galvanized before/after Weaving
Hot Dipped Galvanized before/after Weaving hexagonal wire
netting
PVC Coated Before/After Weaving
Stainless Steel Hexagonal Wire Mesh
